- Change port size or type without replacing casing
- reduces spare parts inventory
- supports ANSI, NPT, and metric porting
- field-configurable for easy installation
- minimizes downtime during pump relocation or system changes

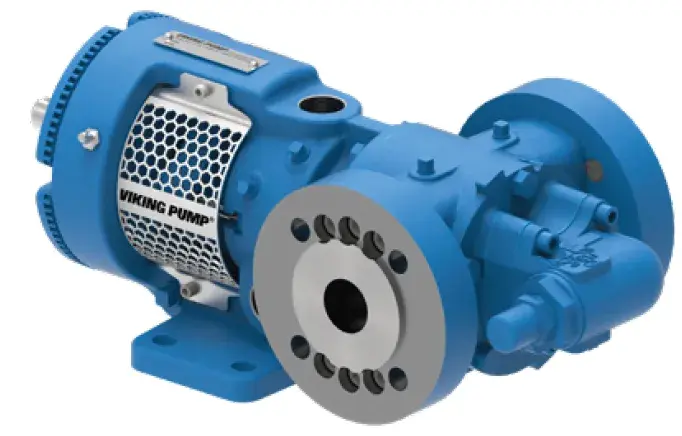

ProPort™ Casing
Viking's innovative pump casing design that allows port size, orientation, and type to be changed in the field without replacing the casing. Supports ANSI flanges, NPT, and metric connections.
Features & Benefits
Applications
- Industrial plants where pump piping configurations change
- replacement of competitor pumps with different port sizes
- reducing spare casing inventory across multiple Viking installations
Performance
- Host pump 1127C Series with ProPort: to 320 GPM (73 m³/h)
- Port types: ANSI Class 150 RF flanges in 2", 2.5", 3", 4"
- Class 300 in 2", 2.5", 3"
- 2" NPT
- DIN PN16 DN50, DN65, DN80
- Bolt-on ports — field-changeable without replacing casing
- Reduces unique casings from 372 to 14
- Two threaded casing drains standard
- Nozzle load ratings exceed ASME, DIN, and global standards
About The Manufacturer
Viking Pump is the industry leader in positive displacement pumps designed and built to handle a wide variety of liquids found in the industrial and sanitary markets. Viking’s broad product line includes Standard Duty Internal Gear, Heavy Duty Internal Gear, External Gear, Vane and Sanitary Pumps as well as industry specific designs for pumping asphalts, chocolates, cold ethanol solvents, ammonia and abrasive liquids.
