- Self-priming design eliminates need for foot valves
- Heavy-duty one-piece shaft for maximum rigidity at all pit depths
- Rugged double-row thrust bearing — grease lubricated, sealed for outdoor installation
- External impeller clearance adjustment maintains high efficiency without disassembly
- Labyrinth bearing seal prevents premature bearing failure from lubricant contamination
- C-face motor mounting accommodates readily available C-face, P-base, and IEC motors
- Multiple intermediate steady bearings permit pit settings to 20 ft (6 m)
- One-piece, self-lubricating, graphite-impregnated steady bearing
- Vapor-proof construction option seals sump vapors — choice of packing or mechanical seal
- Jacketed column and discharge pipes available (tested to 150 PSIG)
- Available in all principal alloys: cast iron, 316 stainless steel, CD4MCuN, Alloy 20, non-metallic
- Widest range of float controls and mounting options available
- API 610 11th edition VS4 compliant version available
- CV 3171 variant: recessed impeller circular volute passes any solid that fits through discharge pipe
- NM 3171 variant: non-metallic construction for severe corrosive service

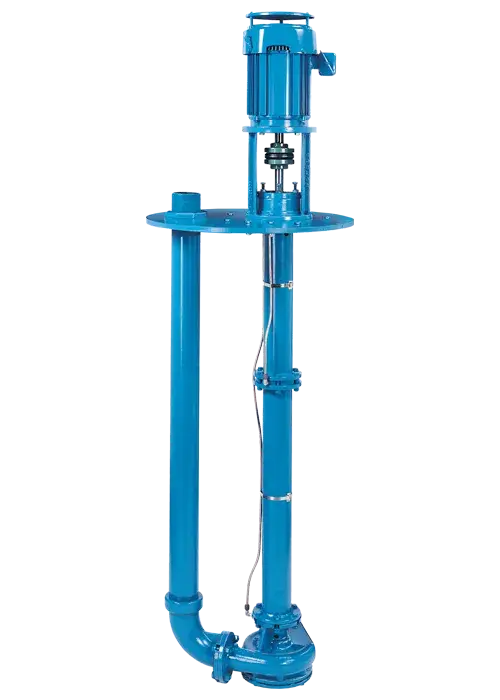

3171 Vertical Sump and Process Pump
The Goulds Model 3171 is the industry's veteran vertical sump and process pump, with thousands of installations worldwide in industrial process, sump drainage, corrosive liquid handling, pollution control, and molten salt applications. API 610 11th edition VS4 compliant, the 3171 family covers the full range of vertical sump service from standard industrial drainage through severe corrosive and high-temperature process duties. The product line includes five variants: the standard 3171 (open impeller), CV 3171 (recessed impeller for solids and shear-sensitive fluids), LF 3171 (low-flow, high-head), NM 3171 (non-metallic for severe corrosives), and API 3171 (API 610 VS4 compliant for refinery and petrochemical service).
Features & Benefits
Applications
- Industrial process sumps and drainage
- Corrosive liquid handling
- Pollution control pit drainage
- Molten sulfur and molten salt service
- Tank unloading
- Fibrous wastewater and large-solids service (CV 3171)
- Severe corrosive chemical service (NM 3171)
- Refinery and petrochemical sump service (API 3171)
- Power generation drainage
- Food processing (CV 3171)
Performance
- 3171 (standard): Capacities to 3,180 GPM (722 m³/h), heads to 344 ft (105 m)
- API 3171: Capacities to 3,180 GPM (722 m³/h), heads to 525 ft (160 m)
- CV 3171: Capacities to 1,300 GPM (295 m³/h), heads to 230 ft (70 m)
- LF 3171: Capacities to 220 GPM (50 m³/h), heads to 950 ft (290 m)
- NM 3171: Capacities to 1,250 GPM (284 m³/h), heads to 300 ft (92 m)
- Temperature: to 450°F (232°C)
- NM 3171 to 200°F (93°C)
- Pit depths: to 20 ft (6 m)
- API 610 11th edition VS4 compliant (API 3171 variant)
